Welcome to the Miscellaneous Models Page!

Here you will find snippets of the various models that don’t fit into a project, and might have been done for fun or for working out ideas.

Carbon fiber inlet prototype for the Nissan 350z. This model was a good introduction to surface modeling and working with surfaces in SolidWorks.

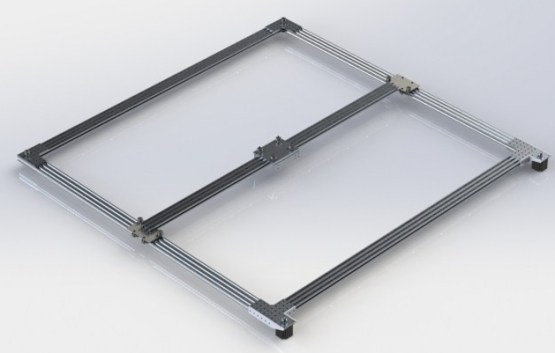

Prototype H-Bot for desktop laser or plasma cutter

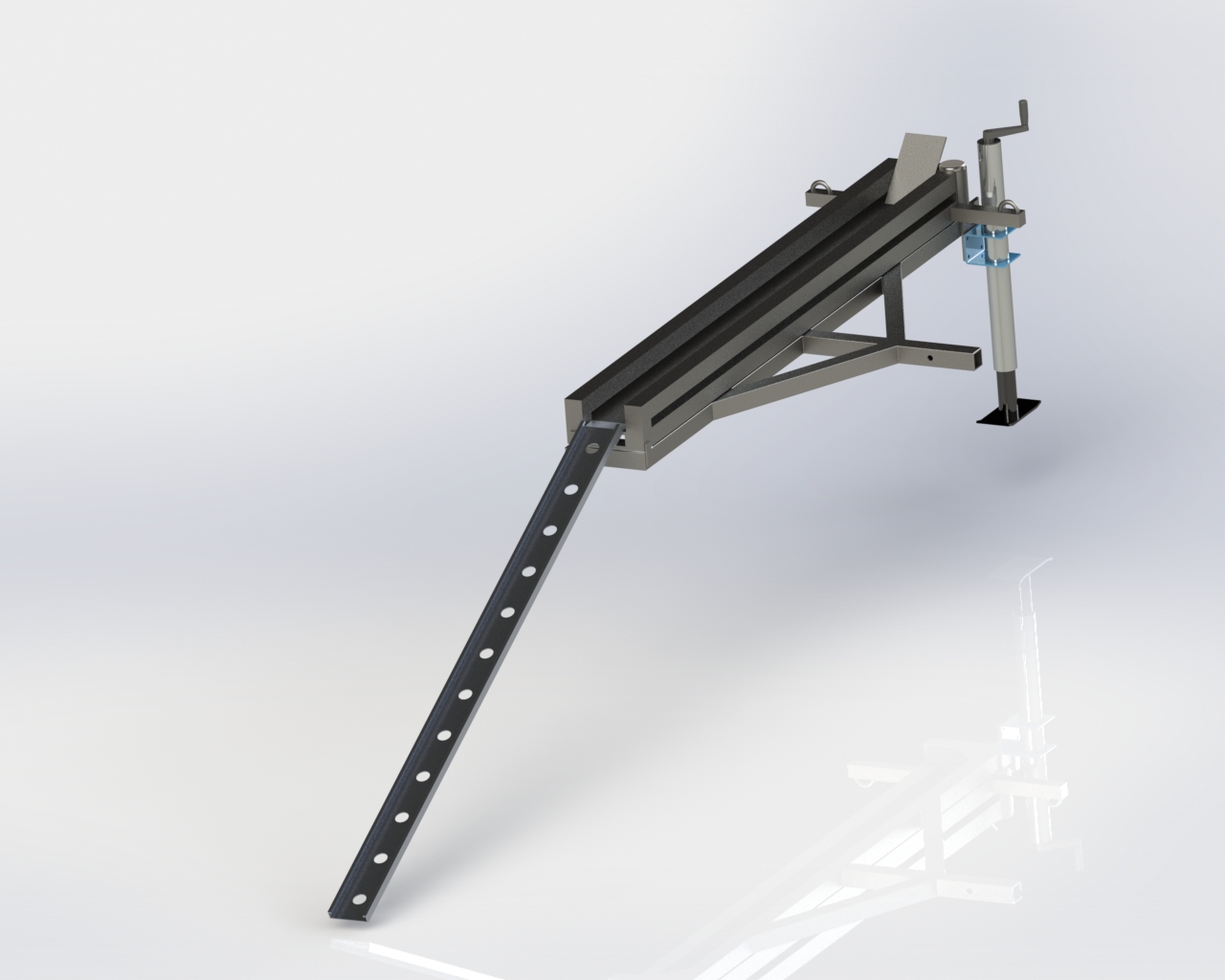

Hitch mounted swing out motorcycle carrier. My contribution to this project was the SolidWorks Weldments model for the hitch and pivot structure. Contributing members were:

• Eric Larson
• Randy Gustason
• Nathan Graham
• Roget Dubose
• Hasib Habibi

Rendering of a mount used for the front splitter of an E36.

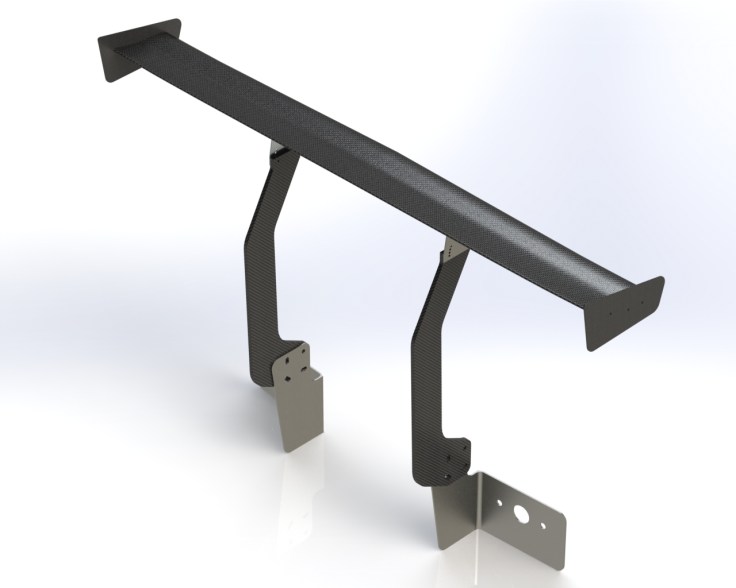

Model of a Battle Aero Style E36 wing.

Years 2000 – 2018 Solidworks Model Mania
